Grade 1 Extra Heavy Duty (Over 3 Million Cycle Tested) Electrified Commercial Storeroom Cylindrical Door Lock With 2-3/4 in Backset (Choose Options)
Grade 1 Extra Heavy Duty (Over 3 Million Cycle Tested) Electrified Commercial Storeroom Cylindrical Door Lock With 2-3/4 in Backset (Choose Options) - Image 1 of 0
Grade 1 Extra Heavy Duty (Over 3 Million Cycle Tested) Electrified Commercial Storeroom Cylindrical Door Lock With 2-3/4 in Backset (Choose Options) - Image 2 of 0
Grade 1 Extra Heavy Duty (Over 3 Million Cycle Tested) Electrified Commercial Storeroom Cylindrical Door Lock With 2-3/4 in Backset (Choose Options) - Image 3 of 0
Grade 1 Extra Heavy Duty (Over 3 Million Cycle Tested) Electrified Commercial Storeroom Cylindrical Door Lock With 2-3/4 in Backset (Choose Options) - Image 1 of 0
Grade 1 Extra Heavy Duty (Over 3 Million Cycle Tested) Electrified Commercial Storeroom Cylindrical Door Lock With 2-3/4 in Backset (Choose Options) - Image 2 of 0
Grade 1 Extra Heavy Duty (Over 3 Million Cycle Tested) Electrified Commercial Storeroom Cylindrical Door Lock With 2-3/4 in Backset (Choose Options) - Image 3 of 0
Grade 1 Extra Heavy Duty (Over 3 Million Cycle Tested) Electrified Commercial Storeroom Cylindrical Door Lock With 2-3/4 in Backset (Choose Options) - Image 4 of 0
Grade 1 Extra Heavy Duty (Over 3 Million Cycle Tested) Electrified Commercial Storeroom Cylindrical Door Lock With 2-3/4 in Backset (Choose Options) - Image 1 of 0
Grade 1 Extra Heavy Duty (Over 3 Million Cycle Tested) Electrified Commercial Storeroom Cylindrical Door Lock With 2-3/4 in Backset (Choose Options) - Image 2 of 0
Grade 1 Extra Heavy Duty (Over 3 Million Cycle Tested) Electrified Commercial Storeroom Cylindrical Door Lock With 2-3/4 in Backset (Choose Options) - Image 3 of 0
Grade 1 Extra Heavy Duty (Over 3 Million Cycle Tested) Electrified Commercial Storeroom Cylindrical Door Lock With 2-3/4 in Backset (Choose Options) - Image 4 of 0
Grade 1 Extra Heavy Duty (Over 3 Million Cycle Tested) Electrified Commercial Storeroom Cylindrical Door Lock With 2-3/4 in Backset (Choose Options) - Image 5 of 0

Grade 1 Extra Heavy Duty (Over 3 Million Cycle Tested) Electrified Commercial Storeroom Cylindrical Door Lock With 2-3/4 in Backset (Choose Options)

Door Closers USA
List Price: $1,479.60
$
Savings: $

Item Return Policy: Assembled Per Order, Non-Returnable
Choose your options:
Finish (59):
Lever Type (59)
Lever Type (59):
Lock Type (PDQ GT):
Switch Options (59)
Switch Options (59):
Voltage (59)
Voltage (59):
Keying (59)
Keying (59):
Add Additional Keys (59)
Add Additional Keys (59):
Product Code: DC59ESTRM
Usually Ships in 3-5 Business Days
This product qualifies for FREE SHIPPING!

DC USA Approved Grade 1 Extra Heavy Duty (Over 3 Million Cycle Tested) Electrified Commercial Storeroom Cylindrical Door Lock With 2-3/4" Backset (Choose Options)

Performance, Mechanical
  • Factory tested to over 3 million cycles (3 times the ANSI/BHMA Grade 1 standard).
  • Lever torque tested to over 2,100 in-lbs (3 times the ANSI/BHMA Grade 1 standard).
Features:
  • For 1-3/4" thick doors
  • Standard ANSI A156.115 (161) door prep for Cylindrical Locks.
  • 2-3/4" Standard Backset.
  • Heavy duty zinc diecast, investment cast, chromated cold rolled steel,stainless steel chassis
  • ASA standard strike
  • 9/16" Throw Deadlocking Latchbolt
  • Non-handed.
  • Includes Two (2) keys per Lock
  • SCC standard (Schlage C Compatible) Keyway
  • 6-pin Brass Insert Cylinder keyed to 5-pins
    Finishes:
    • 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613(US10B) Oil Rubbed Bronze, 625 (US26) Bright Chrome, 626 (US26D) Satin Chrome.
    • Optional Antimicrobial Coating 626 (USD26D) only
    Certifications, Listings Compliances:
    • UL/CUL 10C listed for 3 hrs, for single doors up to 4'0" x 8'0".
    • Certified to ANSI/BHMA A156.2-2011, Grade 1.
    • California Education Code Compliant (Functions XGT135, XGT135LED, XGT145).
    • Federal Specification FF-H-10C (Superseded by A156.2).
    • Florida Building Code HVHZ (High Velocity Hurricane Zone) listed, FL21376. Maximum design load rating: +/- 70 PSF for single doors 3' x 7'.
    • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 forAccessible and Usable Buildings.
    Country of Origin:
    • Proudly Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act
      Electrical Specifications
      • Input voltage: 12-24VDCor 12-24VAC.
      • 24 Volts AC/DC +/- 10%
      • Operating Current: .150A
      • 12 Volts AC/DC +/- 10%
      • Operating Current: .250A
      • Includes rectifier for AC voltage
      • Solenoid operated
      Available Functions:

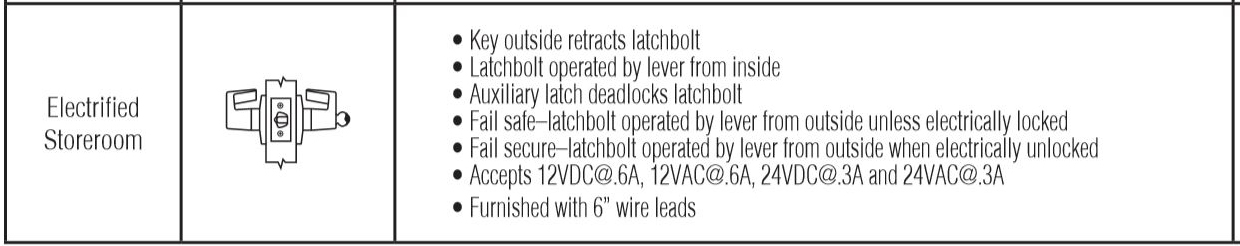

      • 199A Electrified Storeroom: Key outside retracts latchbolt. Latchbolt operated by lever from inside. Auxiliary latch deadlocks latchbolt. Fail safe-latchbolt operated by lever from outside unless electrically locked. Fail secure-latchbolt operated by lever from outside when electrically unlocked. Accepts 12VDC@.6A, 12VAC@.6A, 24VDC@.3A and 24VAC@.3A. Furnished with 6" wire leads
